| Type | Fiber Optic Cable |
| Model Number | ftth drop cable |
| Color | Black & White |
| Jacket Material | LSZH or PVC |
| Strength member | steel wire/FRP |
| Model Number | GJXFCH,GJXH |

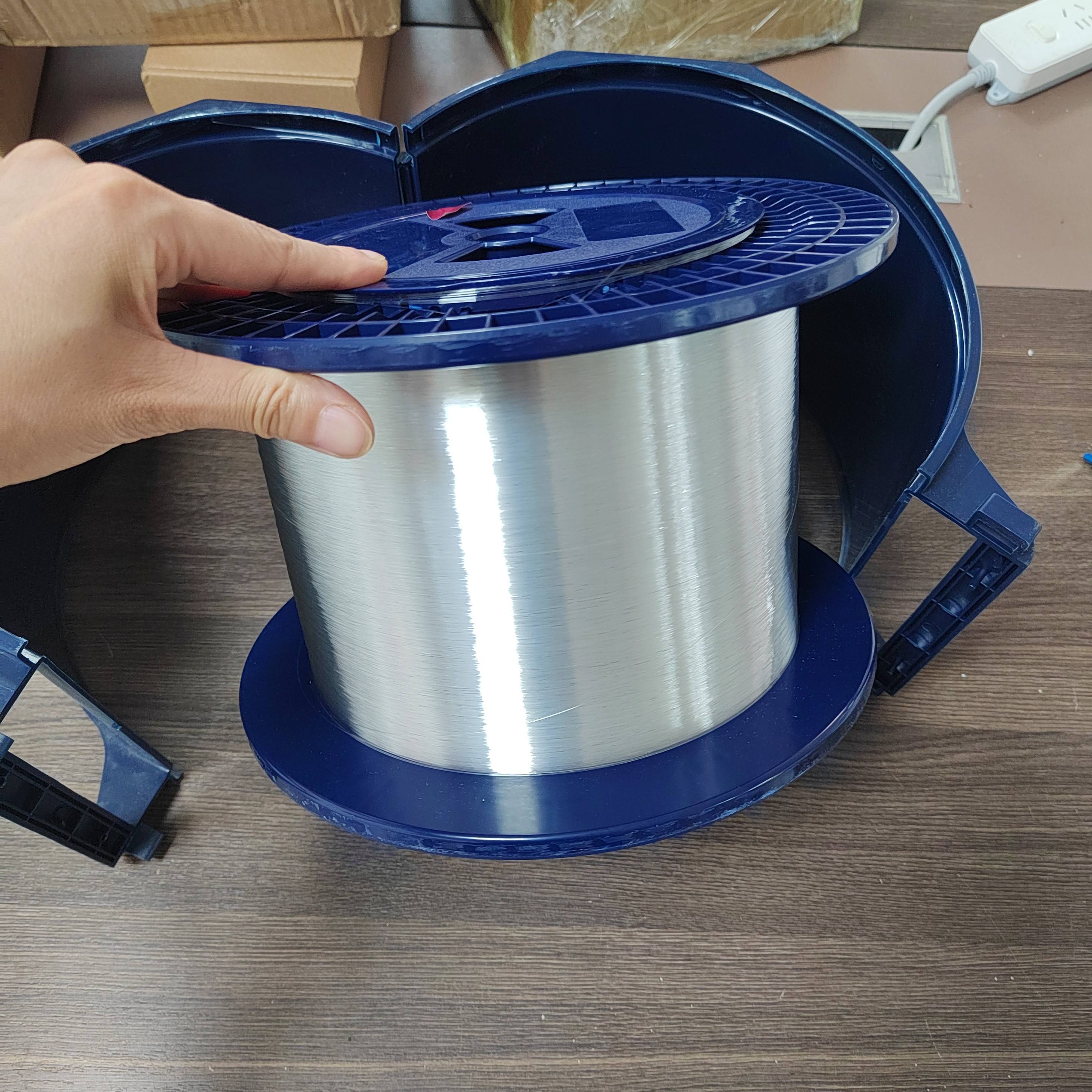

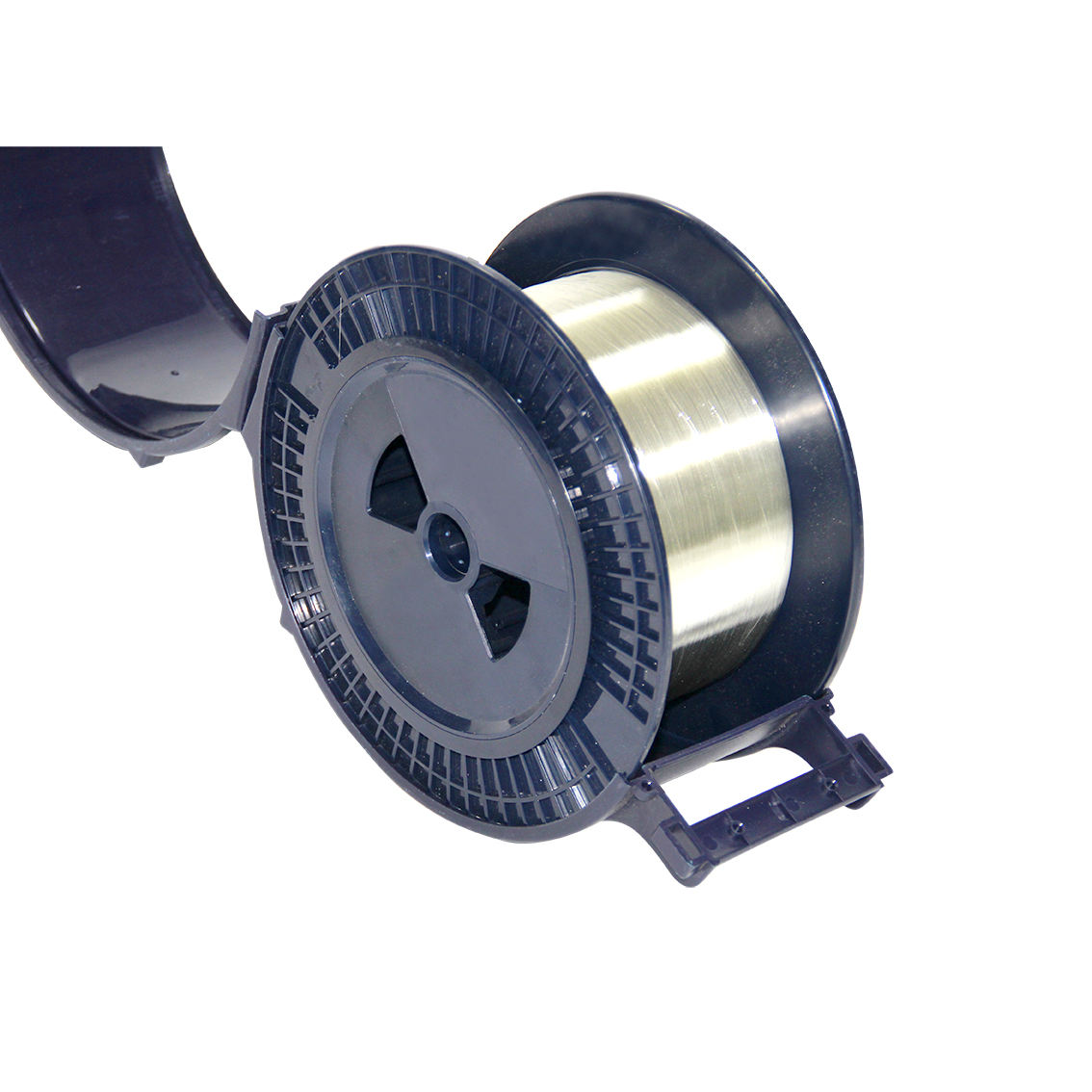

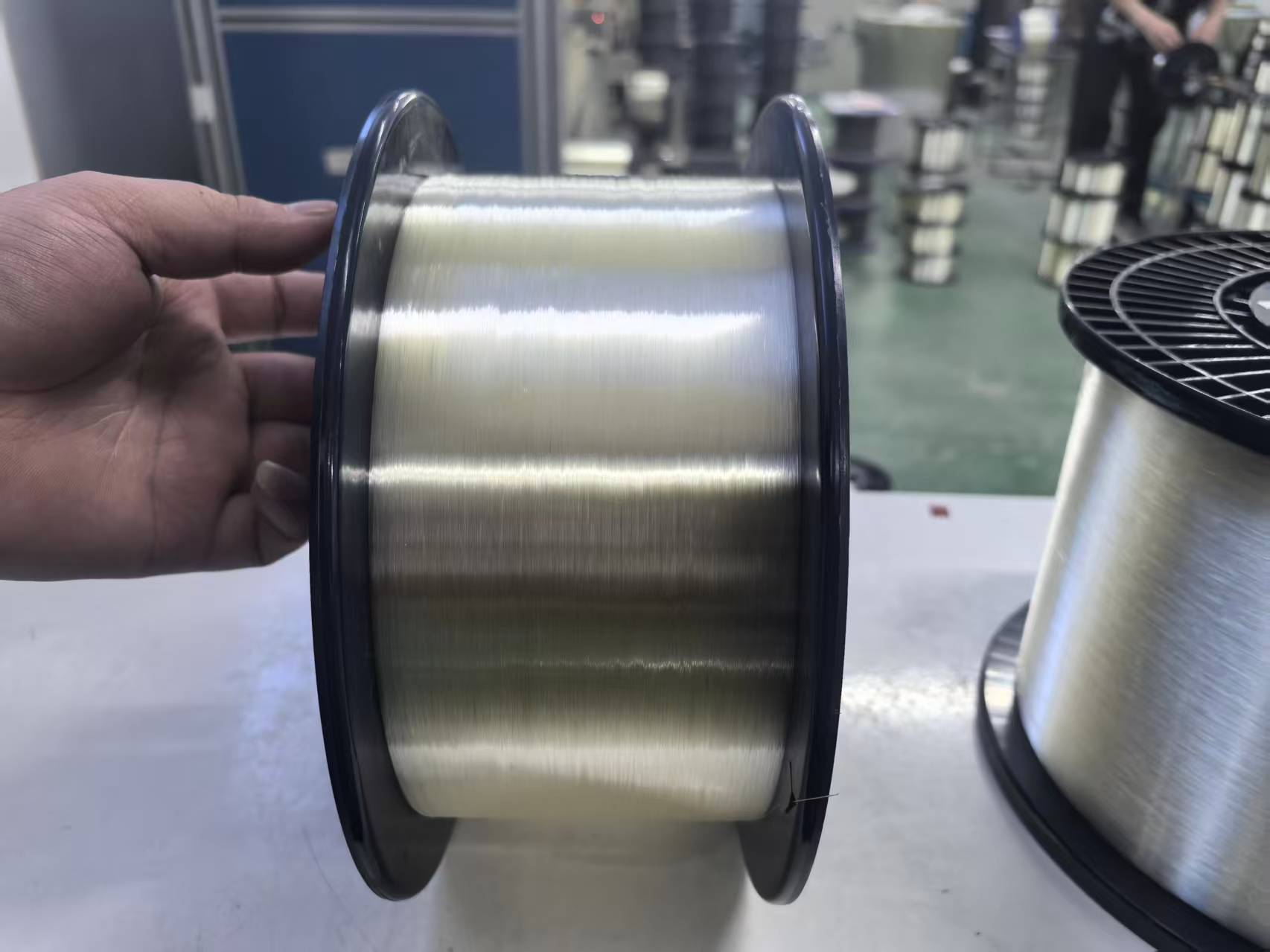

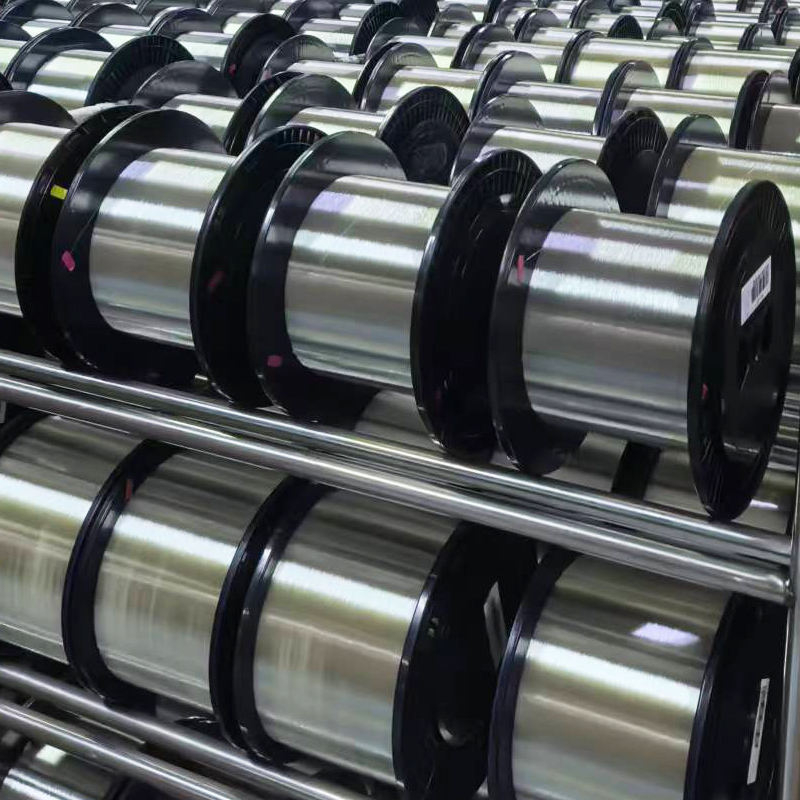

| Fiber options | G657A1, G657A2, G652D |
| Fiber Counts | 1,2,4 Cores |
| Application | FTTH System |
| Messenger member | 1.0/1.2mm steel wire or 7*0.33mm |
| Selling Units | Single item |
| Single gross weight | 0.020 kg |
| Single package size | 40X40X0.035 cm |
Packaging and delivery
| Quantity (meters) | 1 - 500,000 | 500,001 - 1,000,000 | > 1,000,000 |
| Lead time (days) | 7 | 14 | To be negotiated |
Specification
| Fiber Type | Attenuation | Overfilled launch Bandwidth | Effective Modal Bandwidth | 10GB/S Ethernet link length | Min Bending Radius |
| Conditions | 1310/1550nm | 850/1300nm | 850/1300nm | 850nm | 850nm |
|
| Unit | dB/km | dB/km | MHZ.km | MHZ.km | m | mm |
| G652D | 0.36/0.22 |
|
|
|
| 16 |
| G657A1 | 0.36/0.22 |
|
|
|
| 10 |
| G657A2 | 0.36/0.22 |
|
|
|
| 7.5 |
| 50/125 |
| 3.0/1.0 | ≥500/500 |
|
| 30 |
| 62.2/125 |
| 3.0/1.0 | ≥200/500 |
|
| 30 |
| OM3 |
| 3.0/1.0 | ≥1500/500 | ≥2000 | ≥300 | 30 |
| OM4 |
| 3.0/1.0 | ≥3500/500 | ≥4700 | ≥550 | 30 |
| B1-OM3 |
| 3.0/1.0 | ≥1500/500 | ≥2000 | ≥300 | 7.5 |
| B1-OM4 |
| 3.0/1.0 | ≥3500/500 | ≥4700 | ≥550 | 7.5 |
| Fiber Count | Cable Diameter
(mm) | Cable Weight
(kg/km) | Tensile Strength
(N/100mm) | Crush Resistance
(N/100mm) |
| Short Term | Long Term | Short Term | Long Term |
| 1-4 | 5.2*2.0 | 18 | 600 | 300 | 2200 | 1000 |
| 6-12 | 3.0*9.0 | 27 | 1200 | 600 | 1100 | 500 |
Features:
- Suitable for indoor or duct application
- Easy jacket removal without special tools
- Self-support structure
- Excellent crush and impact resistance
- Flame Retardant LSZH jacket is applied
- ITU-T G.657 fiber is available
- Available from 1 to 8-fiber counts
