High-Performance Tethered Drone Fiber Optic Cables | Engineered for Extreme UAV Missions


Why Choose Our Drone Fiber Cables?

Features & Benefits

1.Exceptional Tensile Strength:

Reinforced with high-modulus aramid yarns (Kevlar) to withstand heavy payload pulls and high-altitude winds without fiber breakage.

2.Lightweight & Low Profile:

Minimized weight load on the drone, ensuring maximum flight time and efficiency for tethered systems.

3.Hybrid Power & Data Transmission:

Combines optical fibers for HD video/data streams and copper conductors for continuous power supply in a single rugged cable.

4.Extreme Durability & Weather Resistance:

Tough polyurethane (TPU) outer jacket resists abrasion, UV radiation, oil, and extreme temperatures from -40℃ to +85℃.


Applications

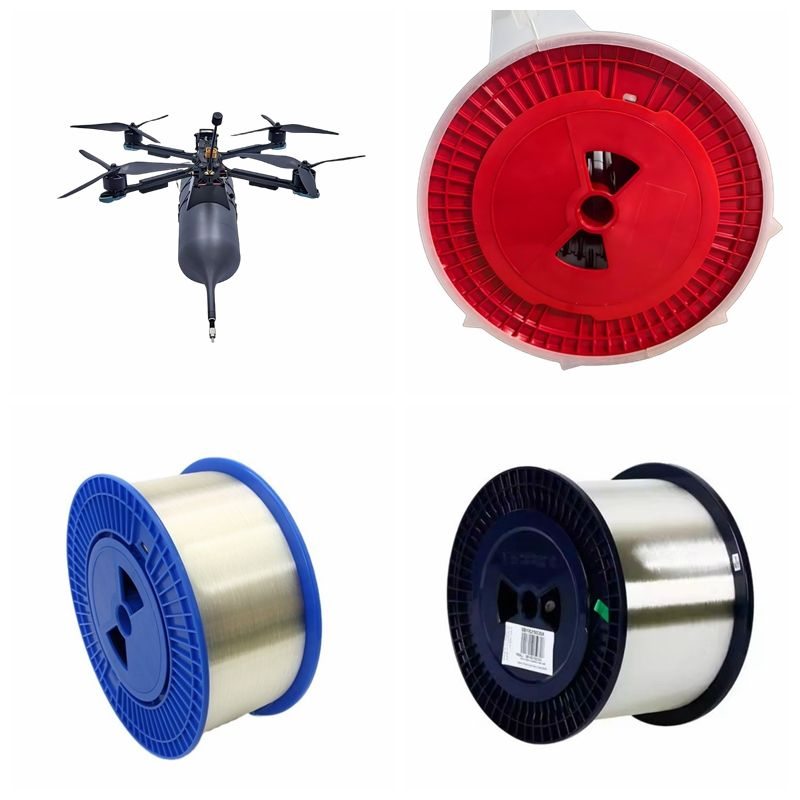

  • Tethered Drones & UAV Systems: 24/7 continuous hovering and surveillance.

  • Emergency & Disaster Communication: Rapid deployment mobile command and aerial broadcasting.

  • Military & Defense Reconnaissance: Secure, jam-proof tactical communications.

  • Industrial & Pipeline Inspection: Long-duration monitoring of remote infrastructure.

Customization Capabilities

Don't see the exact specifications you need? As a direct manufacturer, we offer full customization services. Whether you need specific break-out lengths, specialized armor layers, custom connectors, or

precise fiber counts, our engineering team can deliver prototypes and mass production tailored to your exact requirements.


TypeFiber   Optic Cable
Model   Numberftth   drop cable
ColorBlack   & White
Jacket   MaterialLSZH   or PVC
Strength   membersteel   wire/FRP
Model   NumberGJXFCH,GJXH
Fiber   optionsG657A1,   G657A2, G652D
Fiber   Counts1,2,4   Cores
ApplicationFTTH   System
Messenger   member1.0/1.2mm   steel wire or 7*0.33mm
Selling   UnitsSingle   item
Single   gross weight0.020   kg
Single   package size40X40X0.035   cm

Packaging and delivery

Quantity   (meters)1   - 500,000500,001   - 1,000,000>   1,000,000
Lead   time (days)714To   be negotiated

Specification

Fiber TypeAttenuationOverfilled launch BandwidthEffective Modal Bandwidth10GB/S Ethernet link lengthMin Bending Radius
Conditions1310/1550nm850/1300nm850/1300nm850nm850nm
UnitdB/kmdB/kmMHZ.kmMHZ.kmmmm
G652D0.36/0.22



16
G657A10.36/0.22



10
G657A20.36/0.22



7.5
50/125
3.0/1.0≥500/500

30
62.2/125
3.0/1.0≥200/500

30
OM3
3.0/1.0≥1500/500≥2000≥30030
OM4
3.0/1.0≥3500/500≥4700≥55030
B1-OM3
3.0/1.0≥1500/500≥2000≥3007.5
B1-OM4
3.0/1.0≥3500/500≥4700≥5507.5
Fiber CountCable Diameter
(mm)
Cable Weight
(kg/km)
Tensile Strength
(N/100mm)
Crush Resistance
(N/100mm)
Short TermLong TermShort TermLong Term
1-45.2*2.01860030022001000
6-123.0*9.02712006001100500

Features:

- Suitable for indoor or duct application

- Easy jacket removal without special tools

- Self-support structure

- Excellent crush and impact resistance

- Flame Retardant LSZH jacket is applied

- ITU-T G.657 fiber is available

- Available from 1 to 8-fiber counts
